Product Details:
|
Material: | SS304 | Cooling Material: | Embedded Phase Change Material |
---|---|---|---|
Melting Point: | 4 ℃ | Internal Temp.: | 2-8 ℃ Last 36 Hours |
Temperature Display: | Digital Temperature Display With Automatic Shut-down | Colour: | Golden Or White With Golden Printing |
Highlight: | PCM Travel Cooler Flask,Insulin Carrying Cooler Flask,SS304 Water Cooler Flask |
1, Features
2, Descriptions

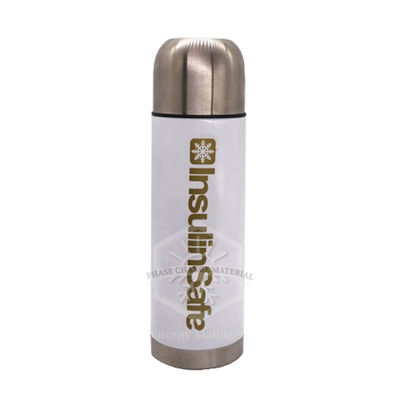

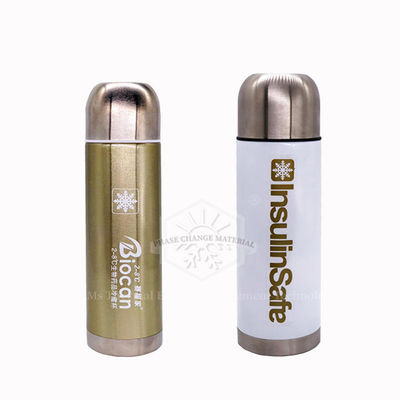

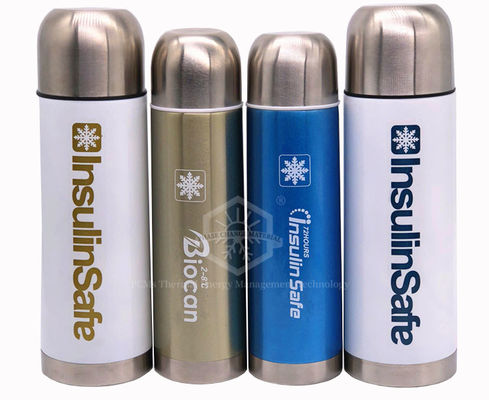

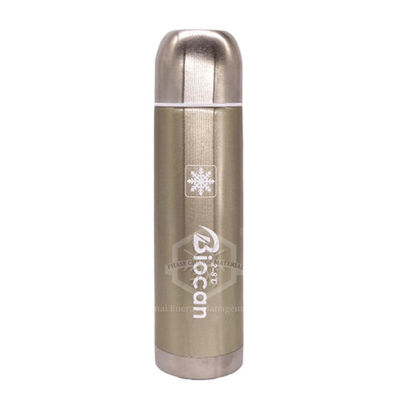

This 2-8°C cooler flask have two sizes, one is Golden color body painting which is standard size, another is big size with white painting and Golden silk printed, the big size design for the requirement of better accommodating capacity for insulin or bio-medications.
The bio-medication cooler flask PCMs melting point preset at 4°C,our test shown that flask internal temperature keep between 2-8°C and last for 36 hours under the ambient temperature at 35°C
Almost all same design with 3 layer SS304 materials and high vacuum insulation technology adopted to lock cold/heat energy within the flask, dual lids to enhance the performance of temperature keeping, and the inbuilt sensitive thermometer integrated with digital display screen for easy monitoring internal temperature
The bio-medication cooler flask suitable for storing and carrying the unopened insulin and other medication which request mandatory to keep under temperature between 2~8°C
3,Testing Graphic
4, Dimensions & Capacity
Dimension(cm) | Golden Cup (Standard) | White Golden Cup (Big Size) |
H (Outer Height) | 24.5cm | 26cm |
OD (Outer Diameter) | 6.5cm | 8cm |
ID (Inner Diameter) | 3.8cm | 4.5cm |
IH (Inner Height) | 18cm | 20cm |
Weight(g) | 600g | 875g |
5, Applications
The Bio-medication cooler flask/bottle applicable to store and transport the unopened insulin and bio-medication like Interferon, Vaccine, blood serum, eye drops, Growth hormone and other medication which required keep under temperature of 2-8°C.
When the cooler flask fully charged, The PCMs inbuilt will absorb cold energy and stored within, and PCMs phase transit to solid state, thus enable the cooler flask can be available for fly consignment which allows for a long distance travelling by flight.
6, How To Use
1. The Flask is designed base on the high degree vacuum thermos technology, please be careful to keep from violent collision which may damage the vacuum layer
2. Open lid and put the thermometer attached into the flask, leave the flask open in the freezer(-15℃ below) for 10-12 hours, make sure the Cooling material(PCMs) inside is fully cold energy charged(the charging time is differ from the different temperature of freezer).Use directly after cold energy charging completed, If put in the freezer for too long time may result in supercooling(<2℃),in this case we can fill with the room temperature water(usually 20℃)into the flask. After 5-10 minutes, when the internal temperature of flask rise up to 2℃~4℃, please drain of water and dry liner before using the flask, If the temperature is still below 2℃,then repeat above steps, till the temperature rise to 2℃~4℃
3. The cooling material(PCMs) reusable with melting and freezing cycles repeating without times limitation
