65mm Encapsulated PCM 5℃ Hdpe Spherical Cooling Ball For Thermal Energy Storage

1, Features

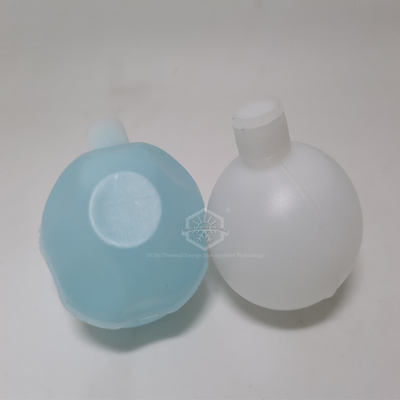

• Phase change material encapsulated by Spherical ball

• Spherical shell material HDPE

• PCMs core material is bio-based SL-PCMs

• Diameter sizes 50mm,55mm,65mm for optional other sizes can be manufactured by customizing

• Colors in diversity of clear,white,blue, etc

• With encapsulation, their thermal energy storage effectiveness enhanced significantly

• They can be stacked to top in an air duct (rectangular or round)

• They are very easy to use, can be just simply added separately into thermal control target object

• They have wide range melting point selectable for specific utilities

• They are safe in use, and reliable in operating

• Long last life cycle without extra maintenance cost

2, Descriptions

     PCMs being directly incorporated into a plastic (or in some application with high pressure stainless steel) spherical accommodation, the high grade HDPE plastic material is moulded to produce standard sized balls, or it can be moulded into different shapes and sizes if required.

    Inside balls, clear liquid PCMs filling and sealed by plug and then enclosed by cover to make sure safety without risk of leakage ,the phase change temperature of PCMs encapsulated is preset at 5℃,when it freezes, it release large amount energy in the form of latent heat fusion at the constantly 5 degree Celsius, Vice Versa, it absorbs the equal amount energy from the immediate environment when melting.This concept is ideal for heat storage applications such as solar, waste heat, hot water, and domestic/commercial heating tanks etc.

    PCMs Thermal Cycle Testing Method: The PCMs was tested by DSC and T-History Methods, After 60,000 Thermal cycles, The PCMs still remaining stable Phase transition temperature and latent heat storage capacity.
