High Specific Heat High Thermal Conductivity Organic PCM Material High Density

High Specific Heat High Thermal Conductivity Organic PCM Material High Density
High Specific Heat High Thermal Conductivity Organic PCM Material High Density

Large Image :  High Specific Heat High Thermal Conductivity Organic PCM Material High Density

Product Details:
Place of Origin: China
Brand Name: TH-PCMs
Model Number: HC-PCMs
Payment & Shipping Terms:
Minimum Order Quantity: 1000Kg
Price: Negotiable
Packaging Details: Kraft Bucket
Delivery Time: 5-30Days
Payment Terms: T/T, Western Union
Supply Ability: 100000Kgs/month

High Specific Heat High Thermal Conductivity Organic PCM Material High Density

Description
PCMs Type: High Thermal Conductivity PCMs Materials: Pure Bio-based With Expansion Graphite Insert
LHS Capacity: 170-310 J/g Phase Transition Temp.: 5-120 ℃
Thermal Conductivity: 5W/m•K Color: Black Dry Powder
Highlight:

Thermal Conductivity Organic PCM Material

,

High Density Organic PCM Material

High Specific Heat High Density High Thermal Conductivity PCM Material

1, Properties



Products Model No Melting point Latent Heat Storage Capacity
HC-5 5oC/41oF 210J/g
HC-15 15oC/59oF 170J/g
HC-18 18oC/64.4oF 170J/g
HC-23 23oC/73.4oF 190J/g
HC-25 25oC/77oF 190J/g
HC-28 28oC/82.4oF 200J/g
HC-35 35oC/95oF 190J/g
HC-37 37oC/98.6oF 210J/g
HC-43 43oC/109.4oF 200J/g

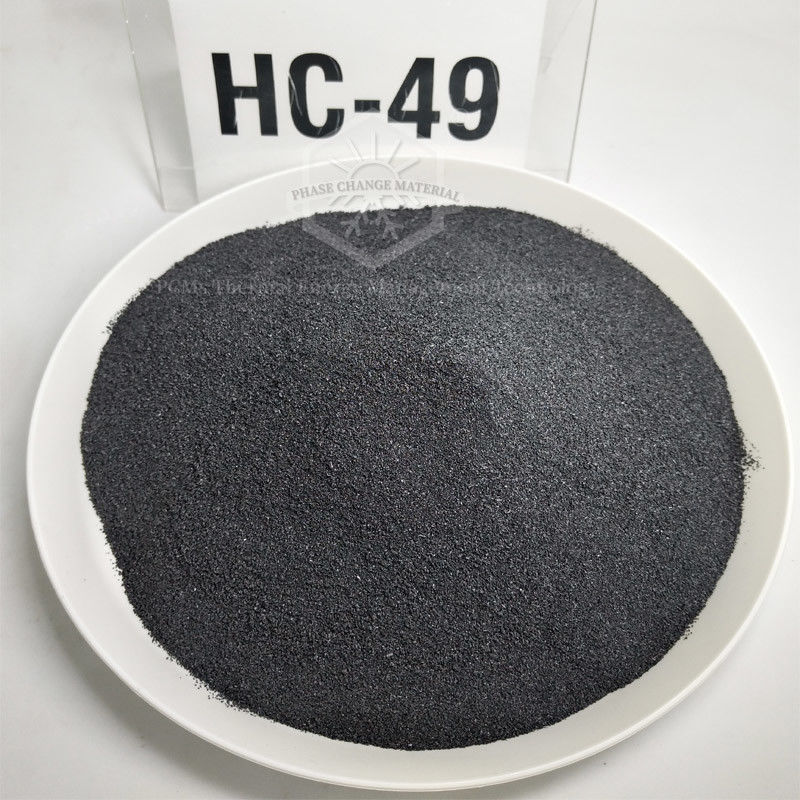

HC-49 49oC/120.2oF 230J/g
HC-53 53oC/127.4oF 200J/g
HC-58 58oC/136.4oF 230J/g
HC-70 70oC/158oF 200J/g
HC-120 120oC/250oF 310J/g

On request more melting point are available!





2, Features

  • HC-PCMs dry powder high thermal conductivity phase change material

  • They are solid to solid phase change with graphite insert for high thermal conductivity

  • They are carbon based PCMs composition

  • They can be die-casting into various shapes for specific application

  • With high enthalpy Latent heat of fusion
  • They are with extensive range of temperature of freeze/melting for option
  • They are safe with SGS verifed

  • They are stable and reliable during phase change cycles

3, Descriptions



  High thermal conductivity phase change materials (HC-PCMs): The black powdery composite PCMs have a longitudinal thermal conductivity of up to 5W/m•K, which is 25 times higher than that of pure phase change materials. At the same time, they remain solid above the phase change temperature, and they can be die cutting into various desired shapes. And also they have high enthalpy. They have wide range of applications in the fields of ultra-fast cooling mug, ultra-fast cooling bowl, electronic device temperature control, building energy saving/temperature control, waste heat recovery etc
